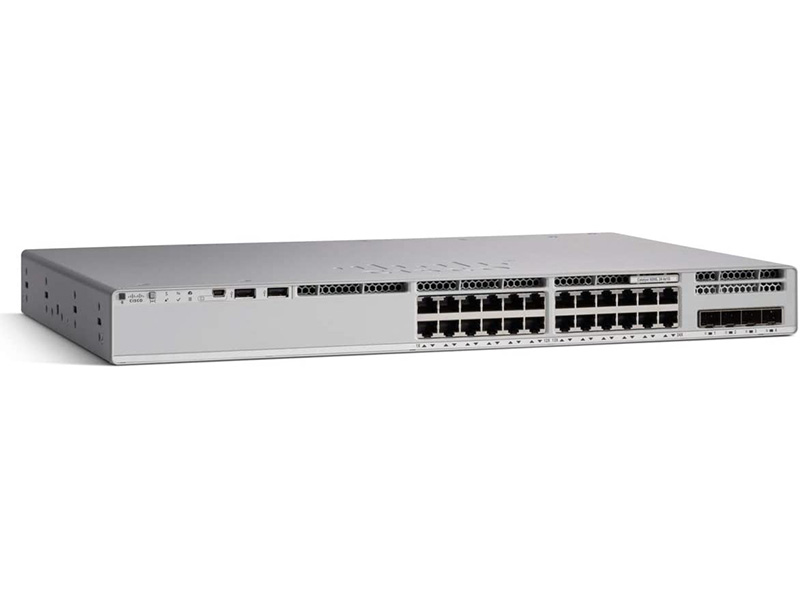

• Item Description: Catalyst 9200L 24-port PoE+, 4 x 1G, Network Essentials
  • Part Number: C9200L-24P-4G-E
  • Type: Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials
  • Power Supply: PWR-C5-600WAC
  • Max PoE Power: 740W  (with additional secondary power supply)
  • DNA License: (Required to order) C9200L-DNA-E-24-3Y, C9200L-DNA-E-24-5Y, C9200L-DNA-E-24-7Y
  • Stacking Module: C9200L-STACK-KIT
  • Uplink: 4x 1G fixed uplinks
  • Form Factor: Rack mountable 1U, Desktop
  • Performance: 136 Gbps switching capacity, 101 Mpps routing rate
  • Specifications: 24 x Gigabit Ethernet PoE+ Port, 4x 1G sabit uplink, 4096 VLAN capacity, Stackwise-80, 1 Virtual Network, 16000 MAC Addresses, 11000 IPv4 routes, 3000 IPv4 routing entries, 1500 IPv6 routing entries, 1000 Multicast routing scale, 1000 QoS scale entries, 1600 ACL scale entries, 16000 flows Flexible NetFlow (FNF) entries, 2 GB DRAM, 4 GB Flash, 512 SVIs, 9198 bytes Jumbo frames, Layer 2, Routed Access (RIP, EIGRP Stub, OSPF – 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO, NETCONF, RESTCONF, YANG, PnP Agent, PnP, Model-driven telemetry, sampled NetFlow, SPAN, RSPAN, MACsec-128
